Product description:

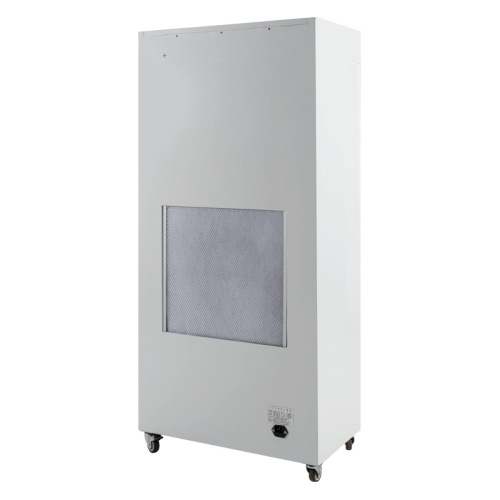

The cabinet-type air purification and disinfection machine is a high-end air purification equipment combined with multiple purification technologies such as plasma + photoelectric catalysis + all-in-one formaldehyde purification net + lysozyme HEPA high efficiency + negative ions. The coexistence of man and machine, no secondary pollution, meets medical air quality requirements of the environment and other environments.
Featured highlights:
Steel shell, coexistence of man and machine
Unique Japanese original intelligent sensor technology, real-time automatic detection and visual display of air quality, PM2.5, temperature and humidity, time and other data. Efficient formaldehyde removal all-in-one purification network, with strong removal of formaldehyde, benzene, TVOC, and decoration Pollution
Use high-intensity, long-life, high-standard C-section ultraviolet disinfection and sterilization;
LCD high-definition display, touch screen and remote control operation function;
The ideal combination of plasma purification and H13 PA high-efficiency technology, high-efficiency sterilization and disinfection, filtration of 0.3um particles to achieve more than 99% of the cumulative running time function, replacement reminder function;
Free choice of working modes such as manual, timing, automatic, and induction operation;
Intelligent alarm prompts fan failure alarm cleaning and maintenance reminder
Photocatalytic device failure alarm ,Plasma fault alarm, Negative ion fault alarm
In the automatic mode, the processing is automatically executed according to the detected pollution source status, and the clean state is kept in real time.
Specification and Parameters
| Model |
Y-1200 |
| Dimensions (W*D*H) |
1250*580*330 |
| Weight (kg) |
55 |
| Use volume (m³) |
150 |
| Circulating air volume (m³/h) |
1200 |
| Plasma electric field intensity (V) |
3800-6800 |
| Negative ion concentration（pic/cm3） |
≥6*106 |
| Bacterial extinction rate （%） |
≥99.92% |
| PM2.5 Purification rate(%) |
≥99.99% |
| Ozone concentration（mg/m³） |
≤0.006 |
| Voltage/frequency V/Hz |
220V/50HZ |
| Noise dB(A) |
≤46 |
| Power (W) |
≤80 |
| Colony number (cfu/m3) |
≤200 |
| UV Lamp Life time(h) |
8000-12000 |
