Vertical laminar air flow system is a key component for modular operating room, efficient disinfection and sterilization efficacy to meet the environmental requirements of various types of surgery. It provides vertical clean air to build a safe and comfortable environment for doctors, nurses and patients.
It generates a sterile air blown into the critical protection area in a vertical laminar manner, the size of laminar airflow ceiling is based upon the space required for surgery type, the staff and devices and equipment needs.
The frame is made in anodized aluminum, sides or bottom put class H14 air filters, DDP screen to ensure the laminar airflow.

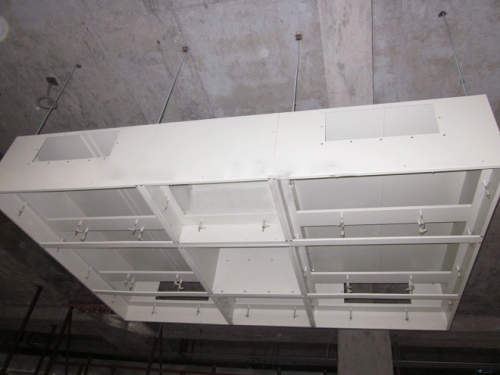

26110 series laminar airflow ceiling (air filters fitted into the sides)
| Model number | Description | Dimensions(mm) | Air filter size(mm) | Air filter quantity |
|---|---|---|---|---|
| 26110 | Laminar airflow class III | 2600x1400x520 | 610x305x292 | 4pcs |
| 26111 | Laminar airflow class II | 2600x1800x520 | 610x305x292 | 6pcs |
| 26112 | Laminar airflow class I | 2600x2400x520 | 610x305x292 | 8pcs |
| 26113 | Laminar airflow class I | 2850x2500x520 | 610x305x292 | 8-10pcs |
| 26114 | Laminar airflow for eye operation theatre | 1500x1500x520 | 610x305x292 | 4pcs |
