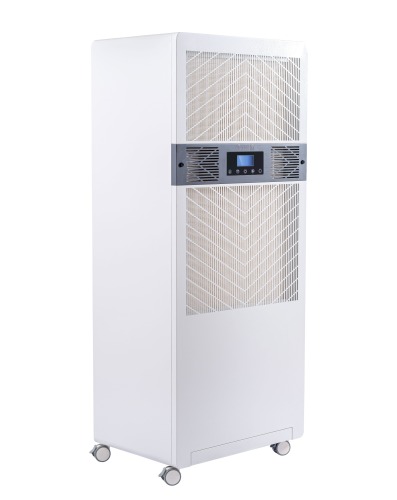

Name: Mobile Hepa Filter Machine
Brand: ICARELIFE
SKU: Y-1000/2000
Availability: InStock
Rating: 5 (1 reviews)

Introduction

ICARELIFE Y-1000/2000 is a mobile solution for air purification. With its high performance filtration, it is excellent for air decontamination in hospital risk areas. This solution does not need any installation work to meet the requirements regarding air treatment of risk areas in hospitals. Instantly operational, ICARELIFE can reach performances demanded by ISO 6 and ISO 7 areas (NF EN ISO 14644-1)

ICARELIFE Y-1000/2000 helps fight Hospital Acquired Infections (HAIs) and has bactericide, fungicide and virucide actions on living particles such as Aspergillus Niger, thanks to the combined actions of HEPA filtration (up to H14, that is, a filtering capacity of 99.995% MPPS on the particles with sizes >0.3μ in accordance with EN 1822 standard)

As the result of working in partnership with our clients, ICARELIFE was developed taking into account remarks of hospital staff - both users and hygienist medical teams.

The result is a compact, mobile and silent unit that offers an immediate solution for achieving the bacteriological and particle classification.

Features

PRE-FILTER SYSTEM

HEPA PRE-FILTERING SYTEM

H14 efficiency according to EN1822 by the action of a very low pressure drop polypropylene filter. Retention is > 99.995% MPPS on the particles with sizes >0.3μ. It will act as a barrier to viruses, which, when transported by larger particles will be filtered.

EASY INSTALLATION

Four wheels in thermoplastic rubber with precision ball bearings. The wheels have a 360 °rotation and both rear wheels are lockable.

Advantage of ICARELIFE Y-1000/2000

Particular class ISO6 by using F7+H14 filters (@25 vol/h)

Decontamination particular kinetics smaller than 10mn

Bacteriological class inferior of B10 (10 UFC/m3)

Air and surface decontamination (walls, floor, instruments) of the whole risk area by the action of free radicals

Ambient pollution reduction

Hospital Air Disinfection Solution — Y-2000 Laminar Flow Air Disinfector

Technical Description

Brief Introduction

Laminar flow air disinfector is mainly made of medium efficiency filter, fan, UV lamp and HEPA filter. Under the work of fan, room air will go through UV disinfecting zone and HEPA filter, then air becomes clean.

Working Principle

1. UV lamps + HEPA filter

2. UV light could penetrate virus cell and destroy its protein structure. Then, virus die and air gets disinfected.

3. Class H13 HEPA filter can remove particles (≥0.3um) and micro-bacterium off effectively. Thus, air gets purified.

Usage

1. Natural bacterium killing rate can be 90% or more after machine running 60min in 150m³ space.

2. Suspended particles (≥0.5um) concentration in air can be or less 352000pc /m³ after machine running 60 min in 150m³ space. And for particles (≥5um), can be 2930pc /m³or less. According to National Regulations GB 50333-2013, laminar flow air disinfector can make room 10000 level clean.

Intended to

Product can be used in burn victim department, blood department, respiratory disease department, etc. Besides, it can replace laminar engineering project and make room 10000 level clean.

Technical Description

1. People can work around when machine is running, no harm caused.

2. Machine shell adopts galvanized steel sheet, stable structure and anti-ignition.

3. Class H13 HEPA filter can remove 0.3um particles off effectively.

4. High-strength UV lamp, durable and effective.

5. Magnetic remote control can stick to machine cover, easy to operate and much convenient.

6. Manual and reservation mode can meet customers more needs.

7. Machine will show accumulated working time and gives alarm when filter need to clean, simple but useful.

8. LCD screen display and one-key to lock can avoid Mis-operation.

9. Adopted brand fan, super-low noise and perfect performance.

Hospital Air Disinfection Solution — Y-2000 Laminar Flow Mobile Air Decontamination Unit

Technical Parameter

CJX-Y-2000 Laminar Flow Air Disinfector

MODEL	Model: CJX-Y-2000
		Moveable
		Dimension: (L×W×H）: 700×500×1715（mm³）
		Weight: 56 kg
TECHNICAL PARAMETER	Disinfection principle: HEPA filter + UV lamps
		Rated volume: 2000 m3/h
		Killing rate for staphylococcus albus＞99.90%: Authority test report is available.
		Killing rate for aspergillus niger＞99.90%: Authority test report is available.
		Natural bacterium killing rate can be 90% or more after machine running 60min in 150m³ space.
		laminar flow air disinfector can make room 10000 level clean after machine running 60min in 150m³ space.
		UV light leakage: <1μw/cm²
		UV ray irradiance inside machine：≥23000μw/cm²
		Ozone leakage: <0.003mg/ m3
PERFORMANCER	People can work around when machine is running, no harm caused.
		Machine shell adopts galvanized steel sheet, stable structure and anti-ignition.
		Class H13 HEPA filter can remove 0.3um particles and PM2.5 off effectively.
		Magnetic remote control can stick to machine cover, easy to operate and much convenient. Three wind speeds are available.
		Manual and reservation mode can meet customers more needs.
		Six timing intervals in all can be set to disinfect air, simple but very useful.
		Modular design, much easy to do maintenance.
		Machine will show accumulated working time and gives alarm when filter need to clean, simple and clear.
		LCD screen display and one-key to lock can avoid Mis-operation.
		Machine will give alarm when fan or other parts fail to work.
POWER	PowerL: ≤200W
POWER		AC 220V 50Hz
