Medical Gas Copper Tube Size System: OD vs ID, DN vs Inch, and mm Conversion
Incorrect tube sizing is one of the most common — and costly — mistakes in medical gas installation. This guide gives contractors and project teams a clear, standard-aligned reference.
Medical gas piping is a life-safety system. Tube sizing affects fitting compatibility, leakage risk, system pressure, and regulatory approval. Yet the sizing conventions used across different standards — ASTM, EN, ISO, and Chinese GB — frequently cause confusion on international projects.
This article explains the key concepts: OD vs ID, DN vs inch, and cross-standard mm conversion — in plain language, with a contractor-ready reference table.
✔ Medical gas copper tube is always specified by Outside Diameter (OD) — not ID or DN.
✔ ID varies with wall thickness and is not used for procurement or fitting selection.
✔ DN is a nominal reference only — it does not represent actual physical dimensions.
✔ Always confirm both OD and wall thickness when ordering.
Why Medical Gas Tube Sizing Causes Confusion
Different regional standards use different naming conventions — and the same "size name" can refer to different physical dimensions depending on the standard being applied.
OD-based. Sizes expressed in fractional inches (e.g., 1/2", 3/4").
OD-based. Direct millimeter designation (e.g., 15 mm, 22 mm).
Reference value only. Does not represent actual OD or ID.
OD-based with local tolerances. May differ in wall thickness.
OD vs ID — The Most Critical Distinction
Outside Diameter (OD)
OD is the only reliable reference for medical gas tube sizing. It defines physical compatibility with fittings, couplings, valves, and connections. All global medical gas standards specify tube sizes by OD.
Inside Diameter (ID)
ID determines flow capacity and pressure characteristics — but it is not used for ordering or installation matching. ID changes with wall thickness, so two tubes with identical OD may have different IDs.
Example: A tube with OD 15 mm and wall thickness 1.0 mm has an ID of 13.0 mm. The same OD with a 1.2 mm wall gives an ID of 12.6 mm. Different performance — but the same fitting applies to both.

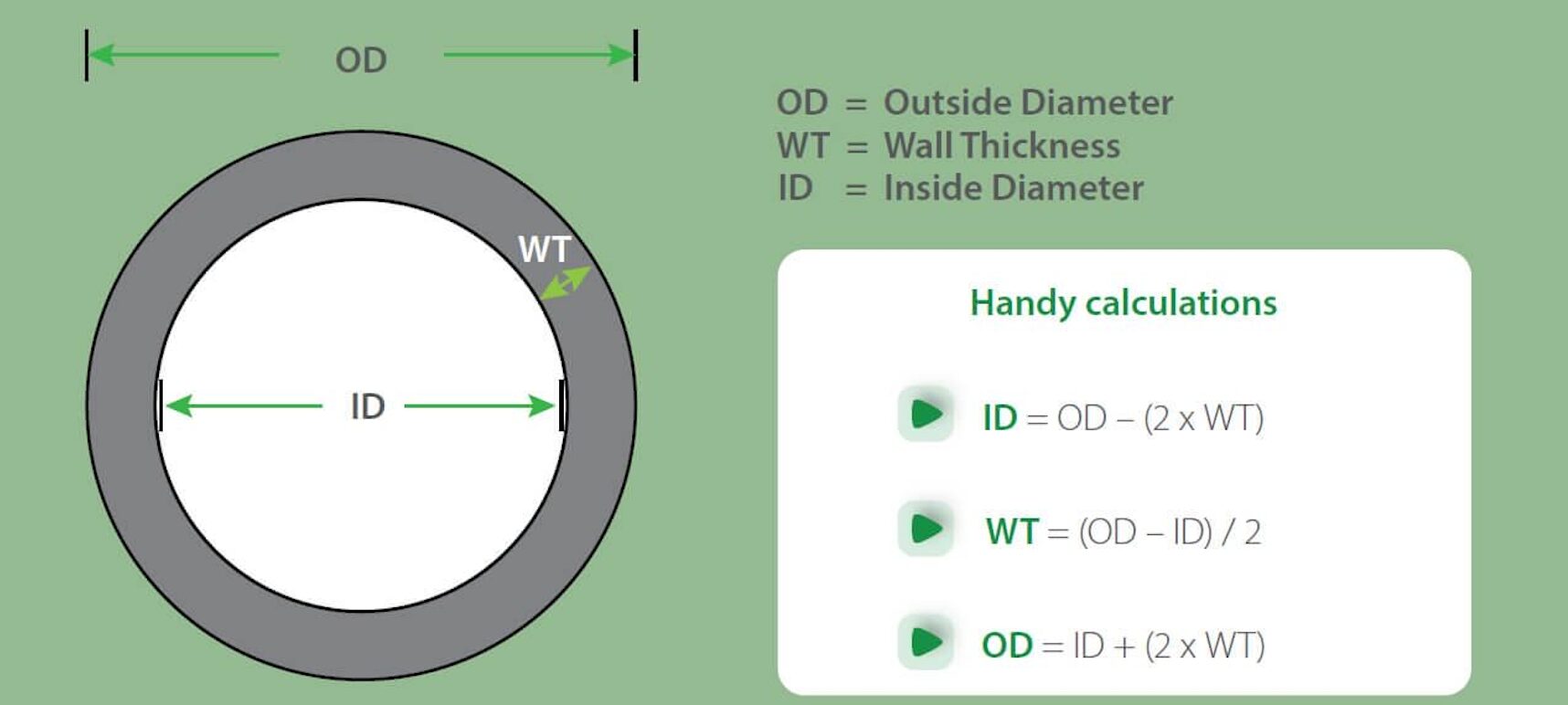

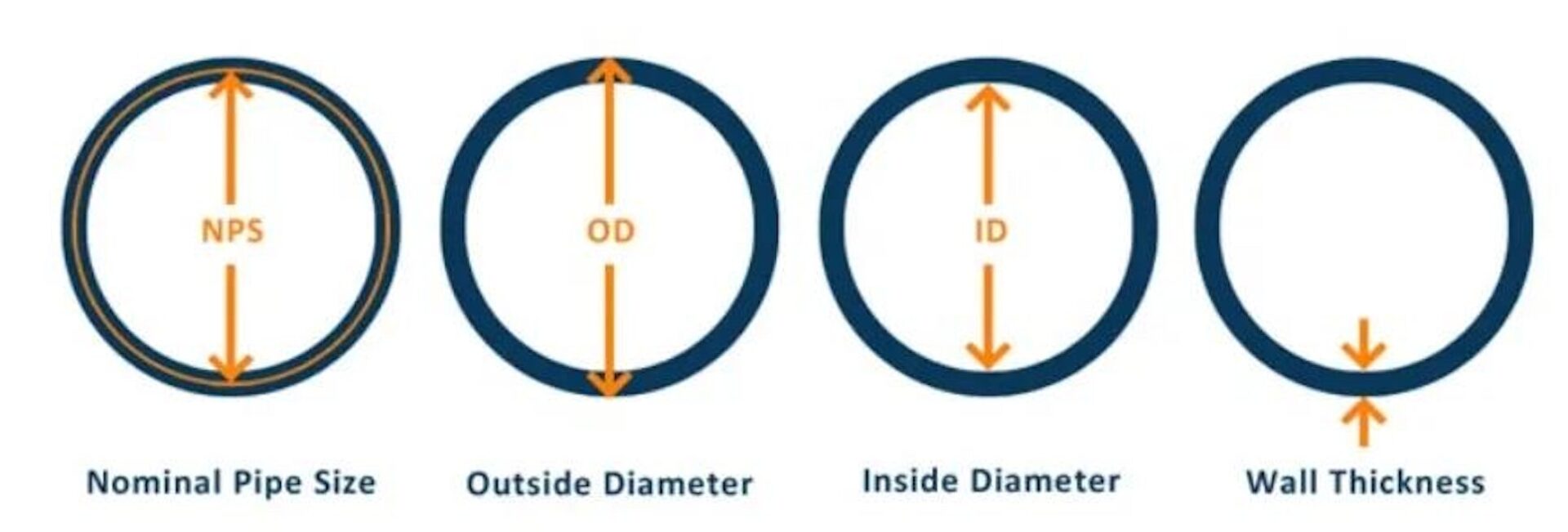

Visual reference: copper tube dimensions and their role in medical gas system specification
DN vs Inch vs mm — Clear Comparison
DN (Nominal Diameter)
DN is a conventional reference used in piping coordination — particularly for valves, flanges, and fittings in European and ISO systems. It is not a real measurement. DN15 does not mean 15 mm OD.
- Used for valve and fitting coordination, not tube procurement
- Always cross-reference DN with actual OD before ordering
Inch System (ASTM B819)
Common in the USA, Southeast Asia, and projects specifying American standards.
- 1/2" → 12.7 mm OD
- 3/4" → 19.05 mm OD
- 1" → 25.4 mm OD
Metric System (EN 13348)
Direct OD designation in millimeters. Common in Europe and projects referencing EU standards. Examples: 15 mm, 22 mm, 28 mm OD.
Standard Size Conversion Table
Reference for converting between inch sizes, metric OD, and typical system applications:
| Inch Size | OD (mm) | Typical Application | Use Zone |
|---|---|---|---|
| 1/4" | 6.35 | Instrumentation, pilot lines | Specialized |
| 3/8" | 9.52 | Small branch lines | Specialized |
| 1/2" | 12.7 | Bed outlets, terminal units | Common |
| 5/8" | 15.88 | Ward and room supply | Common |
| 3/4" | 19.05 | Zone distribution | Common |
| 1" | 25.4 | Main branch lines | Main |
| 1-1/4" | 31.75 | Primary distribution | Main |
| 1-1/2" | 38.1 | Risers and vertical runs | Main |
| 2" | 50.8 | Main trunk lines, plant room | Main |
China vs Europe vs USA — Compatibility
In most cases, copper tubes from different standard regions are fitting-compatible because OD values are consistent. However, differences in wall thickness affect system performance and must be verified.
Example comparison for 15 mm OD tube:
| Standard | OD (mm) | Wall Thickness | ID (mm) | Fitting Compatible? |
|---|---|---|---|---|
| China GB | 15 | 1.0 mm | 13.0 | ✔ Yes |
| Europe EN | 15 | 1.2 mm | 12.6 | ✔ Yes |
✔ Different wall thickness = different pressure rating and flow capacity — verify for your specification
Additional considerations for cross-standard projects:
- Manufacturing tolerance may vary — confirm supplier certification
- Pressure ratings differ between wall thickness grades
- Fitting standards (e.g., press-fit vs. solder) must also be matched
- For oxygen service, cleanliness requirements apply regardless of origin standard
Common Sizing Mistakes on Site
These are the most frequent errors seen during medical gas installation and inspection:
- Ordering based on ID rather than OD — fittings will not match
- Treating DN as a real dimension — leads to wrong tube or valve selection
- Ignoring wall thickness — affects pressure rating and long-term performance
- Applying ACR tube sizing logic to medical gas — different cleaning and certification requirements
- Not confirming fitting and valve standards match the tube standard
- Mixing inch and metric tubes in the same run without verified OD compatibility
Medical Gas Copper Tube Procurement Checklist
Before placing an order, confirm the following:
- ✔Applicable standard confirmed — ASTM B819 or EN 13348
- ✔OD clearly specified in the purchase order
- ✔Wall thickness confirmed and matched to system pressure requirements
- ✔Fittings and valves matched to tube OD and standard
- ✔Supplier certification verified (medical grade, oxygen-clean where required)
- ✔Manufacturing tolerance reviewed for critical connections
