Medical Gas Copper Tube vs ACR Tube: What Contractors Must Verify Before Approval, Procurement, and Installation
In hospital piping projects, “copper tube” is not a sufficient specification. For medical gas systems, the key issue is not only copper material, but also cleanliness level, standard compliance, identification, end protection, installation method, and inspection traceability.
Contractors who treat medical gas tube as normal ACR tube create avoidable risk in approval, commissioning, variation claims, and long-term patient safety.
Table of Contents
- 1. Why this confusion happens on real projects
- 2. Short answer: can ACR tube replace medical gas copper tube?
- 3. Medical gas copper tube vs ACR tube: key differences
- 4. Why the difference matters to contractors
- 5. What to check in submittals and supplier offers
- 6. How to write the specification correctly
- 7. Installation note: correct tube can still fail if installed wrongly
- 8. Internal linking structure
- 9. FAQ
Why this confusion happens on real projects
Many contractors, MEP buyers, and even some distributors see both products as “clean copper tube for gas service,” especially because both may be capped and both may be brazed in the field. That creates a false impression that they are interchangeable.
They are not the same product category in project control terms. ACR tube is normally specified for air-conditioning and refrigeration field service, while medical gas copper tube is specified for hospital medical gas and vacuum systems.
In healthcare work, the issue is not only pressure performance. It is also oxygen-service cleanliness, identification, documentation, and compliance with medical gas codes and verification procedures.
Short answer: can ACR tube replace medical gas copper tube?
In serious healthcare projects, the safe answer is no unless the tube is explicitly certified and accepted for medical gas service by the applicable code, consultant, and authority having jurisdiction.
If the specification, tender, or code calls for ASTM B819 or EN 13348, then supplying standard ASTM B280 ACR tube is a substitution issue, not a routine material choice.
Medical gas copper tube vs ACR tube: key differences
| Item | Medical Gas Copper Tube | ACR Tube |
|---|---|---|
| Main application | Medical gas and vacuum pipeline systems in hospitals and healthcare facilities | Air conditioning, refrigeration, and related field service piping |
| Typical standard | ASTM B819 / EN 13348 | ASTM B280 |
| Cleanliness requirement | Specially cleaned for oxygen/medical gas service, with controlled internal cleanliness | Clean for refrigeration service, but not automatically equal to medical gas cleanliness and documentation |
| End protection | Normally sealed/capped to preserve internal cleanliness until installation | May also be capped, but cap presence alone does not prove medical gas compliance |
| Identification | Marked for medical gas service per medical-gas standard practice | Marked as ACR tube for HVAC/R service |
| Project documentation | Expected to support medical gas submittal, traceability, and code review | Usually supports HVAC/R procurement, not hospital medical gas code submission |
| Approval risk | Aligned with healthcare piping specifications | High substitution risk if offered against B819 / EN 13348 requirement |
Why the difference matters to contractors
- Submittal rejection by consultant or hospital engineer
- Late-stage replacement after material arrives onsite
- Claim exposure for non-compliant material supply
- Commissioning delay during verification or inspection
- Internal contamination risk in oxygen service
- Incorrect joining practice damaging internal cleanliness
- Failure to meet medical gas testing protocol
- Traceability gaps during handover documentation

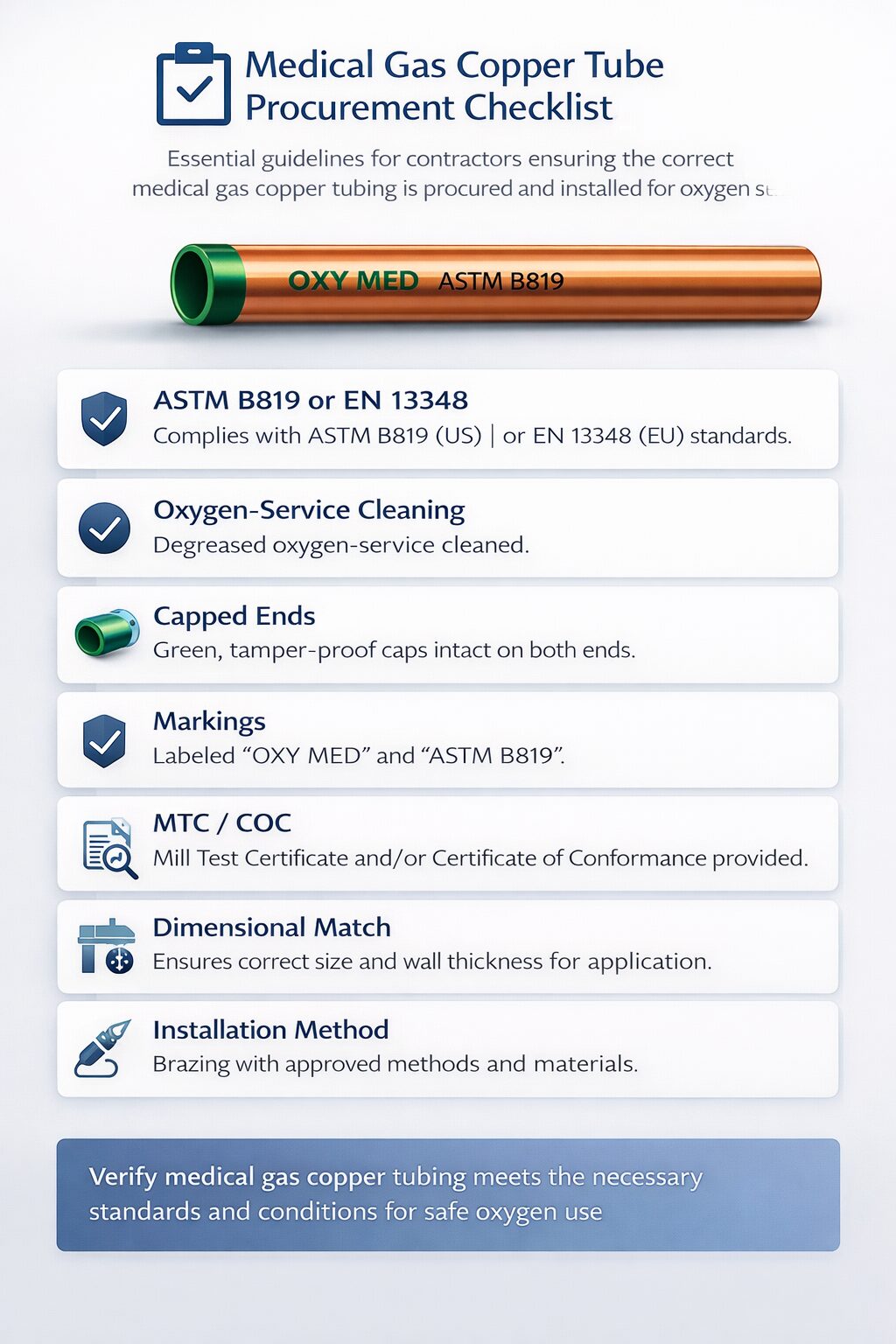

What to check in submittals and supplier offers
Before approving any copper tube for a healthcare gas network, contractors should verify the following points in writing:
- Tube standard: Is it clearly stated as ASTM B819, EN 13348, or another approved medical gas standard?
- Service statement: Does the offer explicitly say “medical gas,” “oxygen service,” or “medical vacuum” rather than generic gas use?
- Cleaning statement: Is the tube declared cleaned/degreased for medical gas or oxygen-compatible service?
- End sealing: Are both ends sealed/capped to protect internal cleanliness during transport and storage?
- Marking: Does the tube marking match the approved standard and service category?
- Mill documentation: Can the supplier provide MTC/COC and traceability by lot or batch?
- Dimensional system: Are OD and wall thickness matched to the project standard, not only to local market stock?
- Installation method: Will field brazing, nitrogen purge, testing, and verification follow the required medical gas code?
Warning signs in quotations
- The quotation says only “copper tube” with no standard.
- The offer shows ASTM B280 but the tender requires ASTM B819.
- The supplier says “same material, no problem” but provides no medical gas documentation.
- The tube is described as capped, but no cleanliness statement is given.
- The supplier mixes refrigeration accessories into a medical gas package without separating standards.
How to write the specification correctly
If you want to reduce ambiguity in RFQ and procurement, the specification should not say only “copper tube for medical gas.” It should define the standard and service condition.
Copper tube for medical gas and vacuum pipeline systems shall be seamless, degreased/cleaned for oxygen-compatible service, supplied in straight lengths with both ends sealed, and compliant with ASTM B819 and/or EN 13348 as required by project specifications and local code. Tube markings, batch traceability, and mill certificates shall be submitted for approval before delivery.
Installation note: correct tube can still fail if installed wrongly
Even when the right medical gas tube is purchased, the installation method still matters. Medical gas piping should be handled as a controlled system, not as normal building copper work.
- Keep end caps in place until immediately before joining.
- Prevent dirt, oil, moisture, and site debris from entering the tube.
- Use correct brazing alloy and qualified procedure.

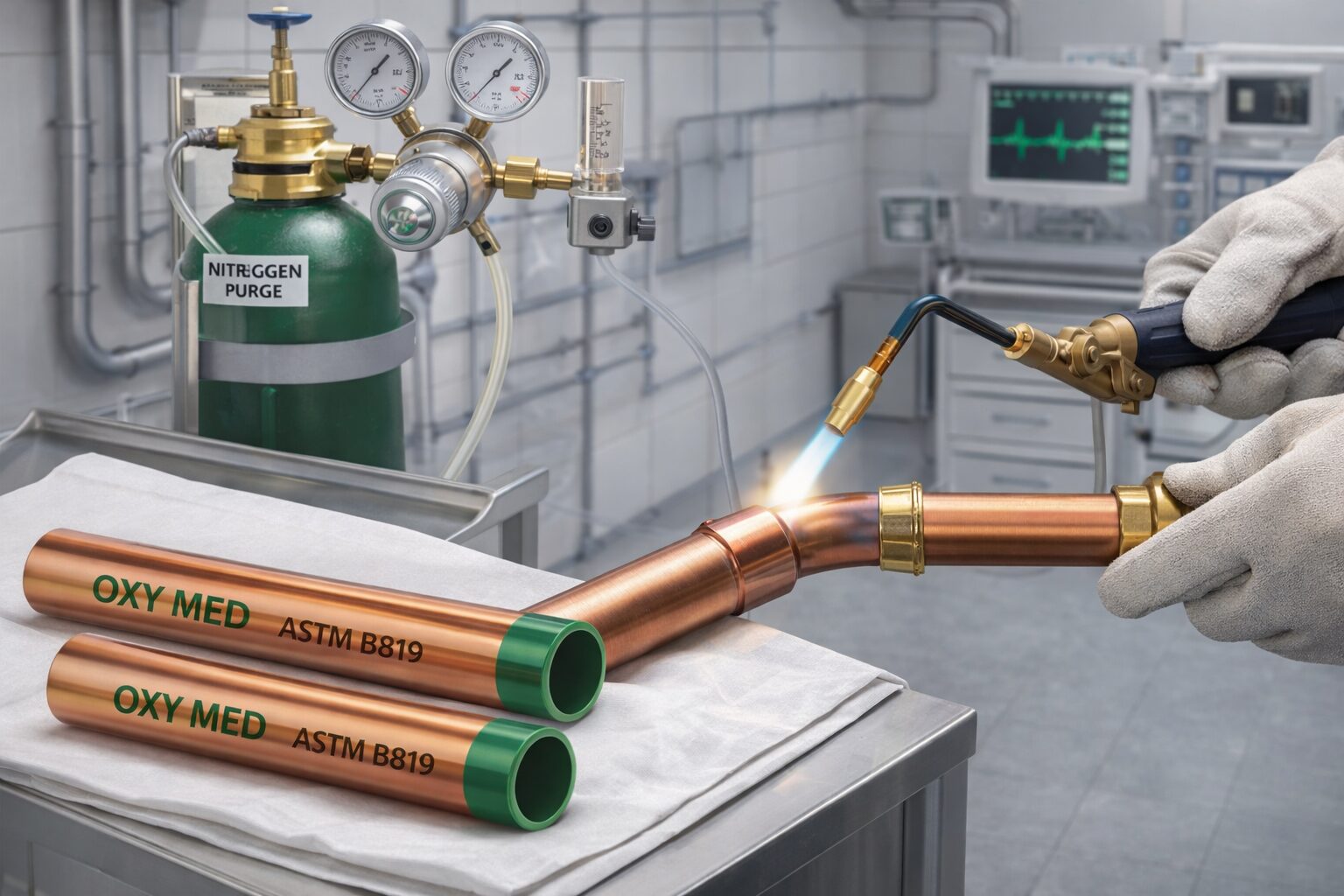

- Purge with oil-free dry nitrogen during brazing to reduce internal oxide formation.

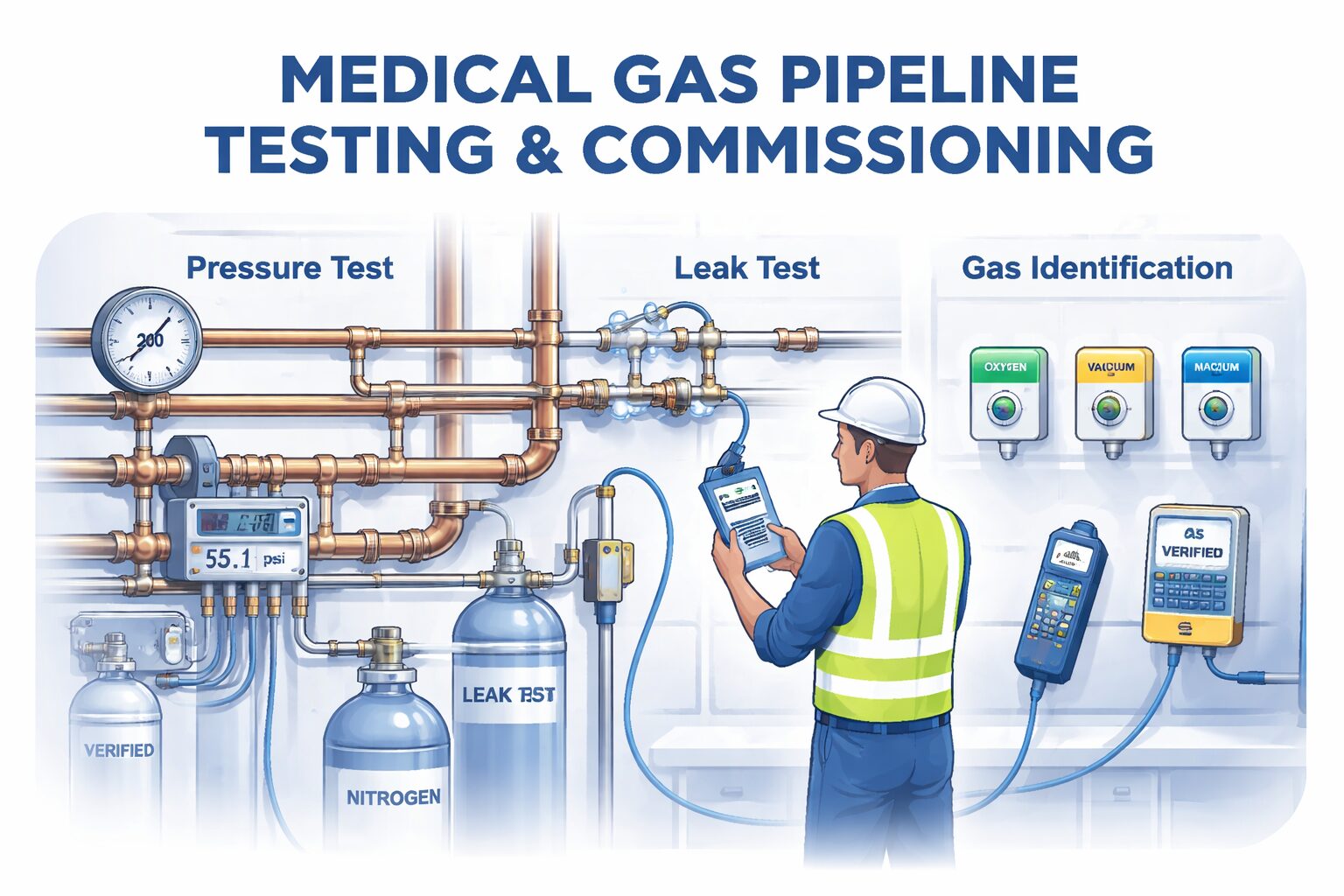

- Complete pressure testing, leak testing, labeling, and verification per project code.
Related Guides for Medical Gas Pipeline Projects
Medical gas piping is not just about selecting the right copper tube. It involves sizing systems, compliance standards, cleaning requirements, and installation practices. If you are working on a hospital project, the following guides will help you avoid common mistakes and improve approval success.
Understand standards, sizes, cleaning requirements, and procurement logic for hospital projects. Tube Size System Explained

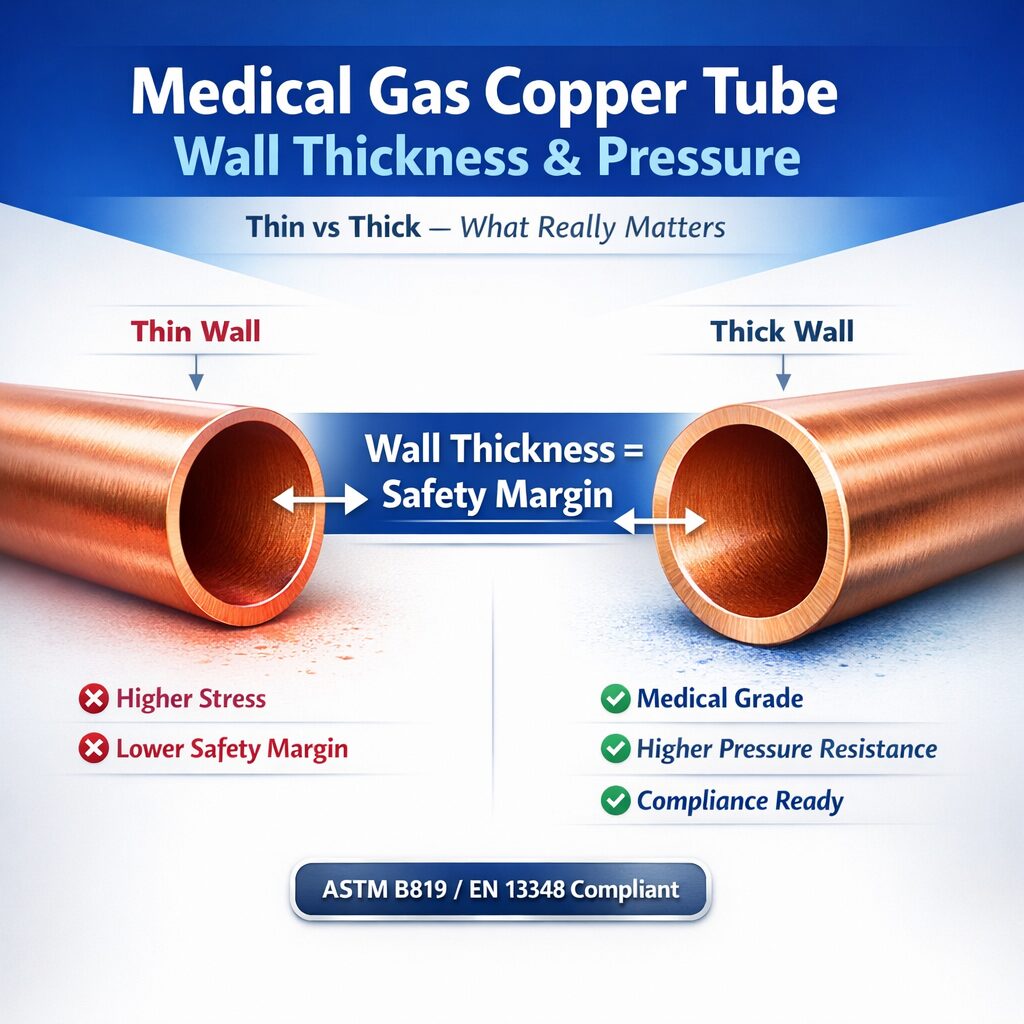

OD vs ID, DN vs Inch, and mm conversion — avoid sizing confusion during design and procurement. Wall Thickness & Pressure Class
Learn how pressure rating and wall thickness affect safety and compliance. Cleaning & Oxygen Safety
Why medical gas tubes require strict degreasing and contamination control. Installation Rules for Medical Gas Piping
Cutting, brazing, nitrogen purging, and testing requirements explained. Standards & Certification Overview
EN, ASTM, ISO, and HTM differences for international projects.
For projects involving mixed metric and imperial systems, refer to our medical gas copper tube size guide to avoid mismatch during procurement.
Conclusion
For hospital projects, the difference between medical gas copper tube and ACR tube is not a minor procurement detail. It affects specification compliance, consultant approval, installation protocol, and commissioning readiness.
If the project is medical gas, contractors should buy and submit it as a medical gas system material package, not as a generic copper tube package.
Need support on medical gas tube selection for a hospital project?
ICARELIFE supports healthcare infrastructure contractors with practical, specification-oriented material coordination for modular operating theater and hospital cleanroom projects.
If your team is reviewing tender specs, comparing EN vs ASTM requirements, or trying to avoid substitution disputes between medical gas tube and ACR tube, early technical clarification can save substantial project cost and time.
FAQ
Not as a routine assumption. If the specification requires ASTM B819 or EN 13348, standard B280 ACR tube should be treated as a substitution and may be rejected unless formally approved.
Because end caps only protect the tube after manufacture. They do not by themselves prove medical-gas cleanliness standard, oxygen-service preparation, correct marking, or medical-gas documentation.
Common references include ASTM B819 in many ASTM/NFPA-based projects and EN 13348 in many EN/HTM-style projects.
Approving copper tube based only on price, appearance, or supplier assurance without checking the exact standard, cleanliness statement, marking, and submittal compliance path.
No. Compliance also depends on handling, brazing, nitrogen purging, testing, labeling, verification, and handover documentation.
