ICARELIFE | Medical Gas Pipeline Knowledge Series

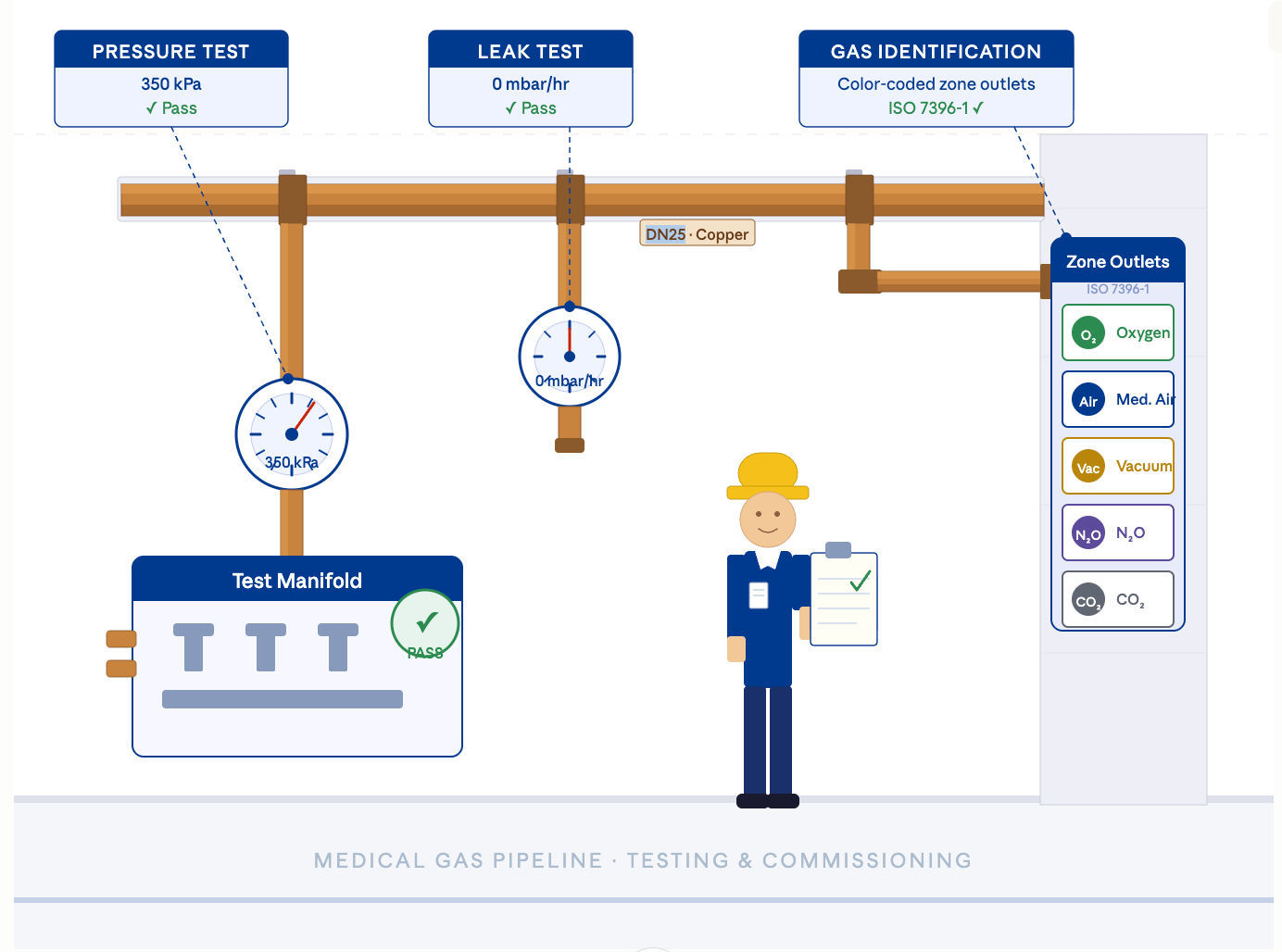

Medical Gas Pipeline Testing & Commissioning: Pressure Test, Leak Test & Certification Guide

Before a medical gas pipeline can be put into service, it must pass a structured testing and commissioning process. This guide explains the core checks used to verify safety, performance, gas identity, and handover readiness for hospital projects.

Medical gas pipeline testing and commissioning is the approval stage between installation completion and clinical use. For contractors, consultants, and QA/QC teams, this is the point where system integrity, leak tightness, cleanliness, gas identification, alarms, and documentation are verified before handover.

Unlike installation work, this stage is not about how the pipe was cut or brazed. It is about proving that the completed system is safe, compliant, and ready for operation.

Quick Answer

• Pressure testing checks whether the pipeline can safely hold test pressure without failure.
• Leak testing confirms the system is fully tight and suitable for medical gas service.
• System purging removes residual particles and contaminants before use.
• Gas identification testing confirms each outlet delivers the correct gas.
• Final commissioning verifies alarms, pressure stability, and operational readiness.
• Proper records and certificates are required for project handover and approval.

1. Role of Testing & Commissioning

Testing and commissioning is the final technical verification stage before a medical gas pipeline is approved for service. Even if the installation appears complete, the system must still demonstrate that it is safe, clean, correctly identified, and operationally reliable.

This stage is critical because it determines whether the project can move to handover. It is also where hidden defects are often discovered, including leakage, unstable pressure, incorrect labeling, documentation gaps, and outlet gas mismatch.

• Confirms system integrity
• Confirms leak tightness
• Confirms outlet gas correctness
• Confirms alarm and pressure performance
• Supports approval, handover, and future maintenance records

2. Pressure Testing

Pressure testing is used to verify that the pipeline can withstand the required test condition without structural failure. This is a strength verification step, not just a leak check.

In practice, dry nitrogen is commonly used as the test medium because it is inert and suitable for safe system verification. The system is brought to the required test pressure and monitored to confirm that pipework, fittings, joints, valves, and assemblies remain stable.

A failed pressure test may indicate weak joints, damaged fittings, poor workmanship, or mechanical defects that must be corrected before the project can proceed.

3. Leak Testing

Leak testing verifies that the installed medical gas pipeline is fully tight. In hospital gas systems, leakage is not a minor issue. Even small leakage can affect pressure stability, waste gas, create performance problems, and cause inspection failure.

Common leak test approaches include pressure hold observation, pressure drop review, and local checking methods such as soap solution application at accessible joints where appropriate. On some projects, more advanced leak detection methods may also be used.

• Confirms zero unacceptable leakage
• Checks joint integrity across the installed network
• Reduces risk of hidden defects remaining in service
• Supports safe handover and consultant approval

Any leak found during this stage must be repaired and retested. A system should not move forward to clinical use unless leak performance has been fully verified.

4. System Purging & Cleaning

After the pipeline has been installed and verified for strength and leak tightness, the system must be purged and cleaned so that residual particles, dust, debris, or other contaminants are removed before operation.

This is not the same as nitrogen purging during brazing, which belongs to installation work. At the testing and commissioning stage, purging refers to flushing the completed pipeline so the internal condition is suitable for medical gas service.

• Removes loose particles and contamination
• Improves system cleanliness before use
• Protects downstream valves, outlets, and equipment
• Supports oxygen-service cleanliness expectations

If contamination remains inside the line, the system may fail inspection or create risk for connected medical equipment.

5. Gas Identification & Cross-Connection Checks

Gas identification is one of the most critical checks in the entire commissioning process. It verifies that every terminal outlet delivers the correct gas and that there is no cross-connection between different services.

In medical environments, a gas identification error is not simply a technical defect. It is a serious safety risk. Each outlet, zone, and corresponding identification point must align with the intended gas service.

• Confirms correct gas at each outlet
• Checks labels and service identification
• Reduces risk of cross-connection error
• Supports safe use by clinical staff

6. Final Commissioning Checks

Once pressure, leakage, cleanliness, and gas identity have been verified, the system moves into final commissioning checks. These checks confirm that the installed network performs correctly under operational conditions.

• Pressure stability verification
• Flow performance verification
• Terminal outlet function checks
• Alarm system function checks
• System response verification during normal use conditions

Final commissioning confirms that the pipeline is not only installed and tested, but also functionally ready for real hospital use.

7. Documentation & Certification

A medical gas system is not fully handed over until the required technical documentation has been completed. On many hospital projects, missing or incomplete records can delay acceptance even if physical installation work is already finished.

• Pressure test records
• Leak test records
• Commissioning records
• Gas identification records
• As-built drawings
• Relevant compliance certificates and project documents

These records support consultant review, owner approval, future troubleshooting, maintenance planning, and warranty control.

8. Common Failures & Rejection Reasons

Many medical gas projects are delayed not because the pipe material is wrong, but because final verification exposes system issues. Common rejection reasons include:

• Pressure instability during testing
• Leakage detected at joints or components
• Contamination found during system cleaning review
• Incorrect gas identity at outlets
• Alarm or terminal performance problems
• Missing handover documents or incomplete certification records

For contractors, the lesson is simple: installation completion does not mean project completion. The system still needs to prove itself during commissioning.

Related Articles

• Medical Gas Copper Tube: Complete Guide
• Medical Gas Copper Tube vs ACR Tube
• Medical Gas Copper Tube Size System
• Wall Thickness & Pressure Guide
• Cleaning & Oxygen Safety Guide
• Installation Guide

9. Frequently Asked Questions

What is the purpose of pressure testing in a medical gas pipeline?

Pressure testing verifies that the pipeline system can safely withstand the required test condition without structural failure.

What happens if a medical gas system fails a leak test?

The leakage point must be identified, repaired, and retested before the system can be approved for service.

Why is gas identification testing so important?

Because each outlet must deliver the correct gas. Any cross-connection error creates a serious safety risk in hospital use.

Is purging during commissioning the same as purging during brazing?

No. Brazing purge is part of installation. Commissioning purge refers to cleaning and flushing the completed pipeline before use.

Why can documentation delay handover?

Because consultants and owners usually require test records, gas identification records, commissioning records, and as-built documents before approval is issued.
