Tools Required for Modular Operating Room Installation

Why the right tools matter

The tools required for modular operating room installation cover accurate setting-out, secure structural fixing, clean panel joints, and safe access. Having the correct tools available before site work begins helps the installation team work efficiently and reduces delays caused by rework or missing equipment.

Layout & Marking Tools

Used to set reference lines for walls, doors, and panel positions before installation begins.

Infrared / Laser Level

Projects precise reference lines on walls and floors to ensure level and plumb installation.

Ink Line Reel / Ink Pot

Marks frame positions quickly over long distances.

Utility Knife / Heavy Blade

Cuts auxiliary materials and trims edges.

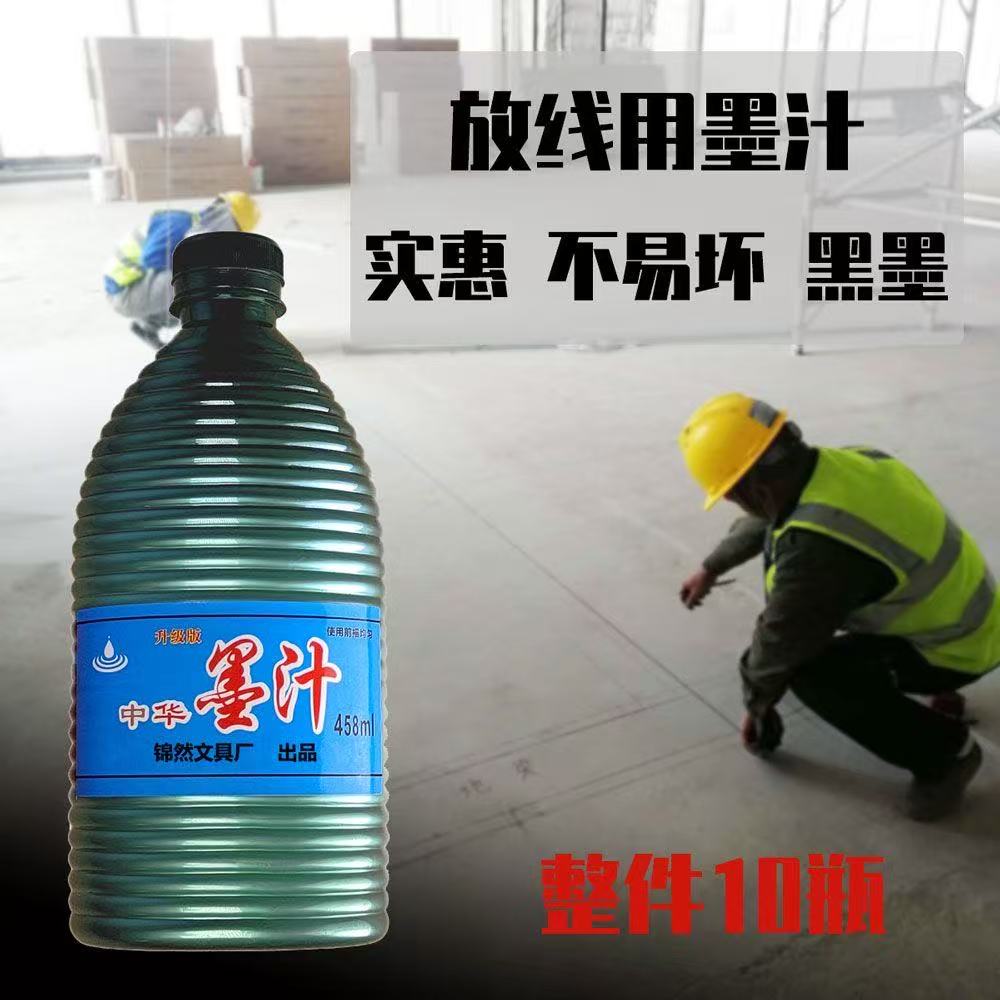

Ink for Ink Line

Produces visible layout lines on surfaces.

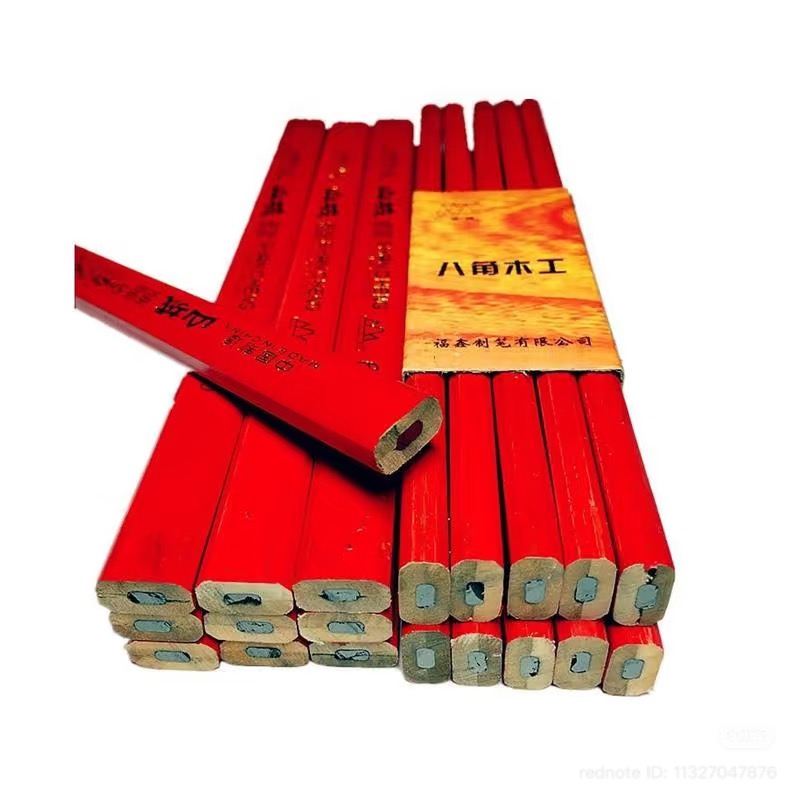

Pencil / Marker

Marks drill points, cut dimensions, and panel references.

Erecting & Structural Tools

Used for frame assembly, fixing, cutting, lifting, sealing, and finishing during installation.

Welding Machine (portable)

Welds steel-frame joints and support elements where required.

Cordless Hand Drill

Installs self-tapping screws and secures frame fittings.

8 mm Hex Bit

Tightens hex-head bolts and frame connections.

Phillips / Cross Bit

Installs different types and sizes of screws.

Wrench Set

Tightens expansion bolts and structural connectors.

Hammer Drill

Drills holes in concrete for expansion bolts.

Hammer Drill Bits M6/M8/M10/M12/M14

Covers hole sizes required for specified anchor sizes.

Aluminium Cutter / Mitre Saw

Cuts aluminium profiles at accurate angles.

Angle Grinder

Dresses weld seams and smooths metal edges.

Aluminium Cutting Disc

Cuts aluminium efficiently without clogging.

Chain Hoist / Manual Puller

Helps lift and position large panels or structural members.

Steel Hammer / Club Hammer

Drives expansion bolts and removes temporary fixings.

Rubber Mallet

Adjusts panels without damaging finished surfaces.

Flathead Screwdriver

Opens clip slots and supports fine adjustment.

Heavy-duty Tape Measure

Checks panel dimensions and spacing.

Waterproof Marker Pen

Marks cut lines and numbers panels.

Caulking / Sealant Gun

Applies sealant evenly along joints.

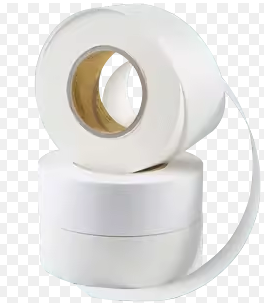

2 mm Gap Filler / Shim Cardboard

Maintains a uniform panel joint width.

Heavy-duty Aluminium Ladder

Provides safe elevated access.

Extension Cord / Power Strip

Supplies power to site tools.

Industrial Fan

Ventilates the workspace after sealant application.

Site power note: Match the power strip rating to the tools connected — a 10A strip on a 220–240V circuit carries roughly 2,200–2,300W. Confirm against local site voltage rather than a fixed wattage figure.

Buying checklist

Voltage and plug type: confirm the local electrical standard and certification requirements.
Battery platform: check charger compatibility and spare-battery availability.
Bit and disc sizes: match accessories to the approved fixing details and materials.
Ladder and lifting ratings: confirm safe working height, load rating, and approved lifting methods.
Local service: check replacement parts, warranty support, and authorized dealers.
Shipping restrictions: batteries and welding equipment may require special handling.

International supplier directory

These are supplier starting points, not endorsements of a specific brand. Confirm local availability, voltage, compliance, and warranty support in the project country.

Tool group	Supplier starting points
Drills, grinders, rotary hammers	Bosch Professional · Makita · DeWalt · Ronix
Concrete drilling and anchors	Hilti
Welding equipment	Lincoln Electric · Miller
Hand and measuring tools	STANLEY · KNIPEX
Sealant guns and accessories	Soudal · H.B. Fuller
Industrial fans and site equipment	RS · Grainger

Frequently Asked Questions

Do I need to buy every tool on this list, or can some be rented?

Items used briefly or infrequently — welding machines, chain hoists, ladders — are commonly rented for a single project. Tools used daily throughout the installation, such as drills, wrenches, and tape measures, are usually worth purchasing. Confirm rental availability in the project country before committing to a purchase.

Which tools are most often missing or under-ordered on site?

Consumable items are the most common gap: hammer drill bits in the specific anchor sizes required (M6–M14), and 2mm gap fillers used throughout panel installation. These run out faster than expected because they are used per fixing point or per joint, not once per job.

Can I use locally available tools instead of the brands in the supplier directory?

Yes. The supplier directory is a starting point, not a requirement. Any tool that meets the same function, voltage, and safety standard is acceptable. Confirm compatibility with local certification requirements before ordering — see the Buying Checklist above.

Does this list cover tools for medical gas or hermetic door installation?

No. This list covers general panel, structural, and finishing tools for modular OR installation. Medical gas piping requires separate brazing, purging, and pressure-testing equipment, and hermetic door alignment may require project-specific calibration tools. Confirm full scope against the approved installation drawings.

What if the site's power supply doesn't match a tool's rated voltage?

Do not use a tool outside its rated voltage range, even with a plug adapter. Confirm local voltage and plug type before ordering. If a mismatch is unavoidable, use a step-up or step-down transformer only if the tool manufacturer approves it for that voltage range.

Safety note: This guide is a contractor reference. Follow the project method statement, manufacturer instructions, local electrical rules, and site health-and-safety procedures.
