Air Distribution Terminals for Modular Operating Rooms

Room-side grilles for the return-air and exhaust-air paths, terminating the HVAC ductwork at the wall or ceiling.

Louver-face and mesh-face return air grilles plus a square exhaust grille, each combining a visible face with a steel-sheet plenum box.

Return air and exhaust air Louver and mesh faces Grille and plenum box assemblies

View configurations →

Airflow functionsReturn air / exhaust air

Face designsLouver / mesh

Return air size897 × 397 × 340 mm

FiltrationMedium-efficiency filter included

Product range

Air Distribution Terminals

Return air grilles are divided into louver-face and mesh-face designs, in aluminium, stainless steel or treated mesh. The square model is classified separately by function as an exhaust air grille.

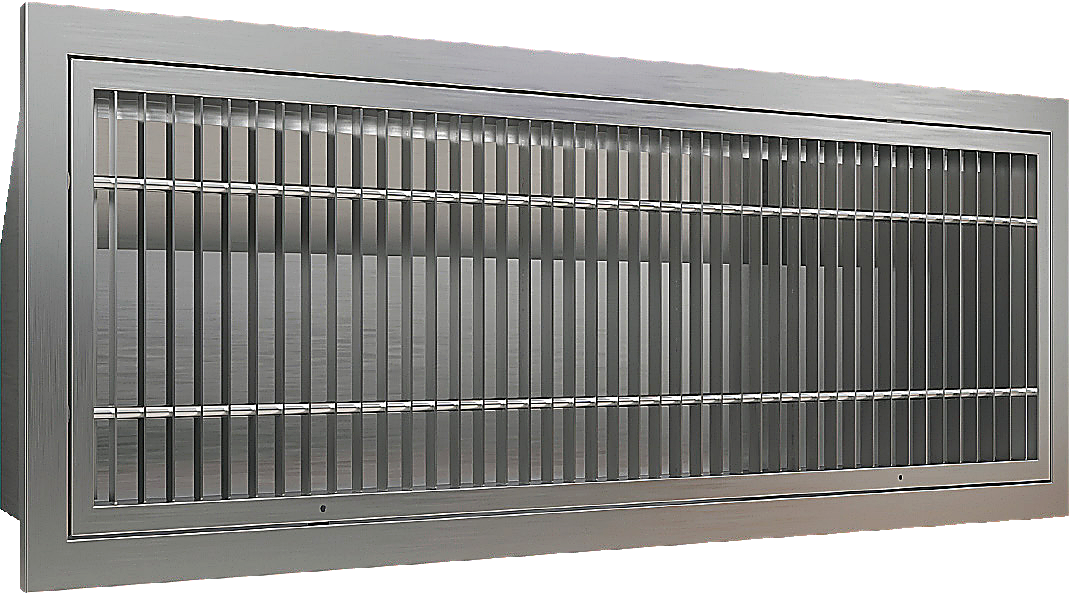

Stainless steel louver return air grille with steel-sheet plenum box — `AT-RA-SS-01`**Stainless Steel Louver Return Air Grille**Return air · Louver face897 × 397 × 340 mmReturn air grille with a brushed stainless-steel face frame and stainless-steel vertical louvers, plus a medium-efficiency filter and black mesh behind the face.

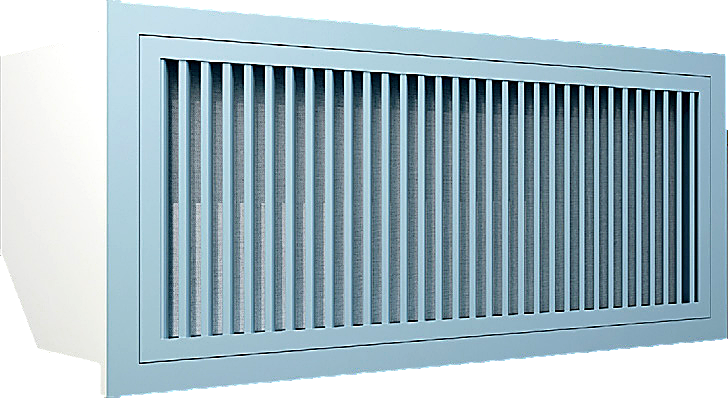

Aluminium louver return air grille with steel-sheet plenum box — `AT-RA-AL-01`**Aluminium Louver Return Air Grille**Return air · Louver face897 × 397 × 340 mmReturn air grille with vertical aluminium louver profiles, a spray-coated steel face frame, medium-efficiency filter and black mesh behind the face.

Steel mesh return air grille with steel-sheet plenum box — `AT-RA-MSH-01`**Steel Mesh Return Air Grille**Return air · Mesh face897 × 397 × 340 mmReturn air grille with a spray-painted steel mesh panel, spray-coated steel face frame, medium-efficiency filter and black mesh behind the face.

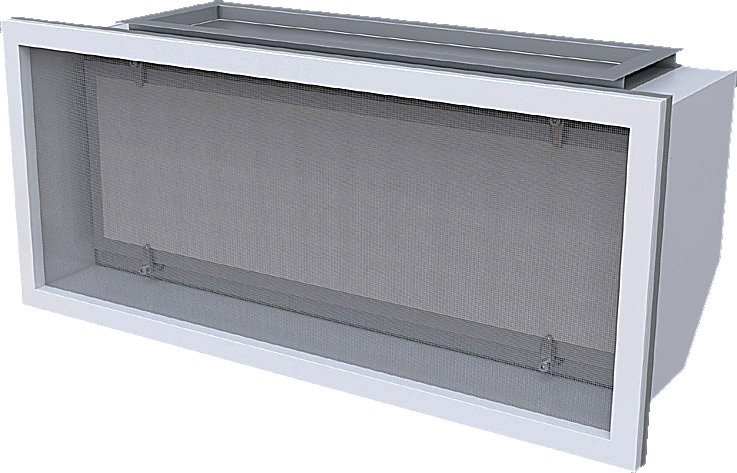

Treated high-resistance mesh return air grille with air-flange connection — `AT-RA-MSH-02`**Treated-Mesh Return Air Grille**Return air · Mesh face900 × 400 × 340 mm or 1200 × 400 × 340 mmReturn air grille with a treated high-resistance mesh screen and air-flange connection. The coating is intended to reduce static and dust adhesion.

Square aluminium louver exhaust air grille with steel-sheet plenum box — `AT-EX-AL-01`**Square Aluminium Louver Exhaust Air Grille**Exhaust air · Louver face430 × 430 × 250 mmSquare exhaust air grille, typically ceiling-mounted, with a spray-coated steel face frame, vertical aluminium louver profiles, medium-efficiency filter and black mesh.

Construction & specifications

Grille and plenum box assembly

A complete terminal combines a visible room-side grille with a concealed plenum box and duct connection. Each unit shown includes a medium-efficiency filter behind the face; the treated-mesh return air inlet also has an air-flange connection.

Specification	Detail
Face options	Aluminium or stainless-steel louvers; spray-painted steel mesh; treated high-resistance mesh screen
Plenum box	Steel sheet with a baked/powder-coated finish
Return air sizes	897 × 397 × 340 mm, 900 × 400 × 340 mm, 1200 × 400 × 340 mm
Filtration	Medium-efficiency filter and black mesh behind the face

Project coordination: Airflow direction, volume, filtration grade, pressure-control accessories and connection geometry must all be settled by the project HVAC design and the standards that apply to the facility. Terminals are scheduled against that design, not the other way round.

How to specify

How to specify your air terminals

Airflow functionReturn air or exhaust air path

Face designLouver face or mesh face

Face sizeRoom-side opening and overall assembly dimensions

Duct connectionConnection size, orientation and flange detail

Filter and accessoriesMedium-efficiency filter, black mesh, dampers

Material and finishAluminium, stainless steel, steel mesh or treated mesh

FAQ

Frequently asked questions

What is the difference between a return air grille and an exhaust air grille?

A return air grille collects room air and sends it back to the air-handling unit for recirculation. An exhaust air grille removes air from the room and sends it outdoors or to a designated exhaust system. They can look identical, so selection follows the duct it connects to, not the face pattern.

Why choose a treated mesh face over a standard louver face?

The treated high-resistance mesh carries a coating intended to reduce static build-up and dust adhesion, which suits areas where cleaning intervals are long or airborne particulate is a concern. Standard louver faces are the general-purpose choice and are easier to match to neighbouring finishes.

Are the plenum box and filter included with the grille?

Yes. Each terminal shown ships as an assembly — the room-side face, the steel-sheet plenum box, a medium-efficiency filter and black mesh behind the face. Duct connection geometry is matched to your HVAC drawing.
