Cleanroom Pass Boxes & Transfer Windows

Transfer materials between two controlled areas without moving people through the doorway, keeping the room envelope closed and traffic out of the corridor.

Mechanical and electronic interlock options, from a compact 600 mm wall window up to a floor-type unit for trolleys and bulk transfers.

Mechanical and electronic interlock Wall-mounted and floor-type Four standard sizes

View configurations →

Interlock typesMechanical / electronic

Sizes600 mm to 2400 mm wide

InstallationWall-mounted or floor-type

ApplicationCleanroom material transfer

Product range

Cleanroom Pass Boxes & Transfer Windows

Four configurations cover most material-transfer points: two mechanical interlock windows, a standard electronic interlock window and a floor-type unit sized for trolleys. All are built for installation into a cleanroom wall.

Mechanical interlock cleanroom pass box — `PB-MI-01`**Mechanical Interlock Transfer Window**Transfer window · Mechanical interlockW600 × H600 × D600 mmCompact wall-mounted transfer window with a mechanical interlock, for instruments, trays and packs moved by hand between two controlled areas.

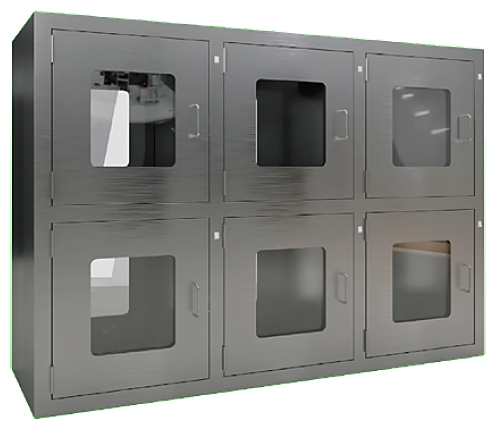

Combined mechanical interlock pass box for large transfers — `PB-MI-02`**Combined Mechanical Interlocking Transfer Window**Transfer window · Combined unitW2400 × H1600 × D600 mmLarge-format transfer unit with mechanical interlocking, sized for bulk loads and high-throughput transfer points.

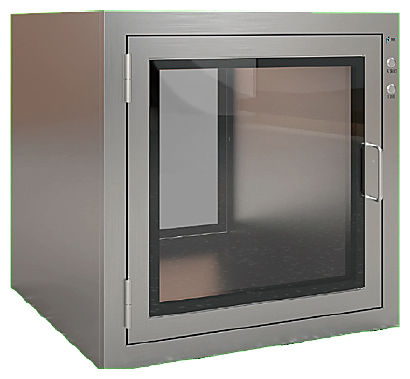

Electronic interlock cleanroom transfer window — `PB-EI-01`**Electronic Interlock Transfer Window**Transfer window · Electronic interlockW600 × H600 × D600 mmWall-mounted transfer window with an electronic interlock, allowing door state to be indicated and linked into room controls where the protocol requires it.

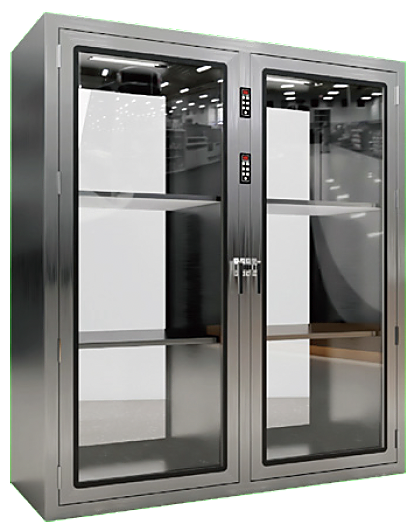

Floor-type electronic interlock pass box for trolley transfer — `PB-FE-01`**Floor-Type Electronic Interlock Transfer Window**Transfer window · Floor-typeW1600 × H1800 × D600 mmTrolley-height floor-type unit with an electronic interlock, so wheeled loads can be rolled straight in without lifting.

Construction & specifications

Controlled transfer through the wall

A pass box is a sealed chamber set into the wall between two areas, with a door on each side. The interlock is the part that matters: only one door can be open at a time, so the pressure relationship between the two rooms is never short-circuited by an open pathway.

Specification	Detail
Interlock	Mechanical interlock, or electronic interlock depending on configuration
Sizes available	600 × 600 × 600 mm through 2400 × 1600 × 600 mm
Mounting	Wall-mounted, or floor-type for the trolley-height unit
Configuration	Single chamber, or a combined unit where the layout requires it

Project coordination: Interlock type, size and mounting should be selected to suit the room classification and the transfer procedure defined in your facility's operating protocol. Certification, decontamination validation and pressure-holding performance are project-specific and must be confirmed against the specification for your cleanroom.

How to specify

How to specify your pass box

Interlock typeMechanical interlock, or electronic interlock where status indication is needed

Transfer sizeLargest item or trolley that has to pass through

MountingWall-mounted at bench height, or floor-type for trolley transfer

Wall constructionThickness and type of the wall the unit is built into

Traffic patternHow often transfers happen and who operates them

Adjacent roomsWhich two areas the box connects, and their pressure relationship

FAQ

Frequently asked questions

What is the difference between a mechanical and an electronic interlock?

A mechanical interlock uses a physical linkage between the two doors, so one door cannot be released until the other is closed and latched. An electronic interlock uses solenoid locks controlled by a circuit, which allows the door state to be indicated on a panel and, where required, tied into the room's access or monitoring system.

When is a floor-type unit the right choice?

When the transfer load is moved on wheels. A bench-height window suits trays, instruments and packs handled by hand; a floor-type unit lets a trolley roll straight in without a lift, which matters for heavy or frequent bulk transfers.

Can the pass box be built into a modular operating-room wall?

Yes. The units are designed to be built into the wall panel and finished flush on both faces. Send us the wall thickness and construction, plus the largest item that has to pass through, and we will match the unit and opening.
