Laminar Airflow Ceiling for Operating Rooms

Ceiling-mounted HEPA-filtered laminar flow modules that deliver a uniform downward air curtain over the surgical field, designed to work with a separate medical air-handling unit.

A range of cleanroom classes and face sizes from 1200 × 1200 mm up to 2600 × 2400 mm, with H14 HEPA filtration, a 200-mesh stainless steel diffusion screen and a powder-coated steel housing.

H14 HEPA filtration 0.15–0.25 m/s face velocity ISO 14644 cleanroom classes

View configurations →

Filter gradeH14 HEPA ≥ 99.995% @ 0.3 µm

Face velocity0.15 – 0.25 m/s

Noise level≤ 42 dB

Construction1.2 mm powder-coated electrolytic steel

Product range

Laminar Airflow Ceilings

Three standard models cover ISO Class 5 / Class 100 through ISO Class 7 / Class 10,000 cleanroom levels, with face sizes matched to common operating-room and clean-area footprints. Each unit is designed for connection to a dedicated medical air-handling unit and is supplied without the high-efficiency filter, insulation cotton or AHU — these are sized and procured to the project HVAC design.

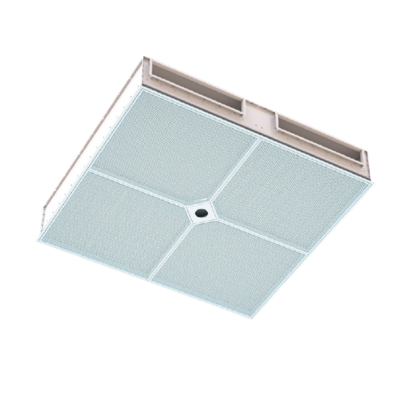

Class 100 perforated plate laminar airflow ceiling — `LAF-2600-2400`**Class 100 / ISO 5 Laminar Airflow Ceiling**Perforated plate laminar flow hoodFace 2600 × 2400 mm · Unit 2637 × 2436 × 485 mmHighest cleanliness level for orthopedic, implant and other high-risk surgery. Face velocity 0.15–0.25 m/s, airflow 3370–5616 m³/h.

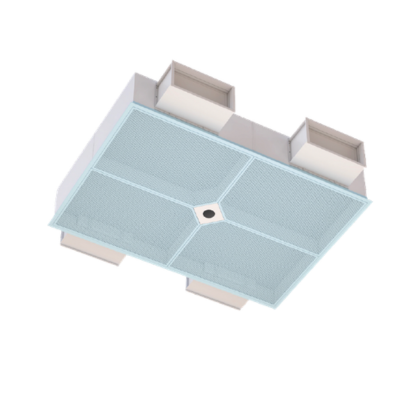

Class 1000 mesh plate laminar airflow ceiling — `LAF-2600-1800`**Class 1000 / ISO 6 Laminar Airflow Ceiling**Mesh plate laminar flow hoodFace 2600 × 1800 mm · Unit 2637 × 1836 × 485 mmFor general surgery and standard operating rooms. Face velocity 0.15–0.25 m/s, airflow 2527–4212 m³/h.

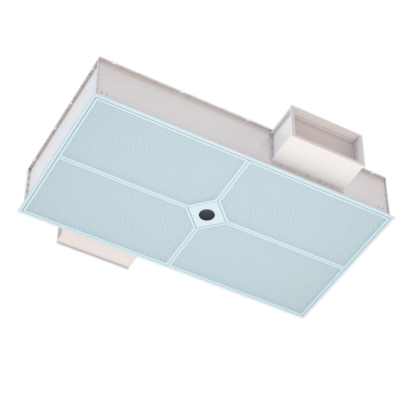

Class 10000 perforated plate laminar airflow ceiling — `LAF-2600-1400`**Class 10000 / ISO 7 Laminar Airflow Ceiling**Perforated plate laminar flow hoodFace 2600 × 1400 mm · Unit 2637 × 1436 × 485 mmFor minor surgery, procedure rooms and lower-class clean areas. Face velocity 0.15–0.25 m/s, airflow 1966–3276 m³/h.

Construction & specifications

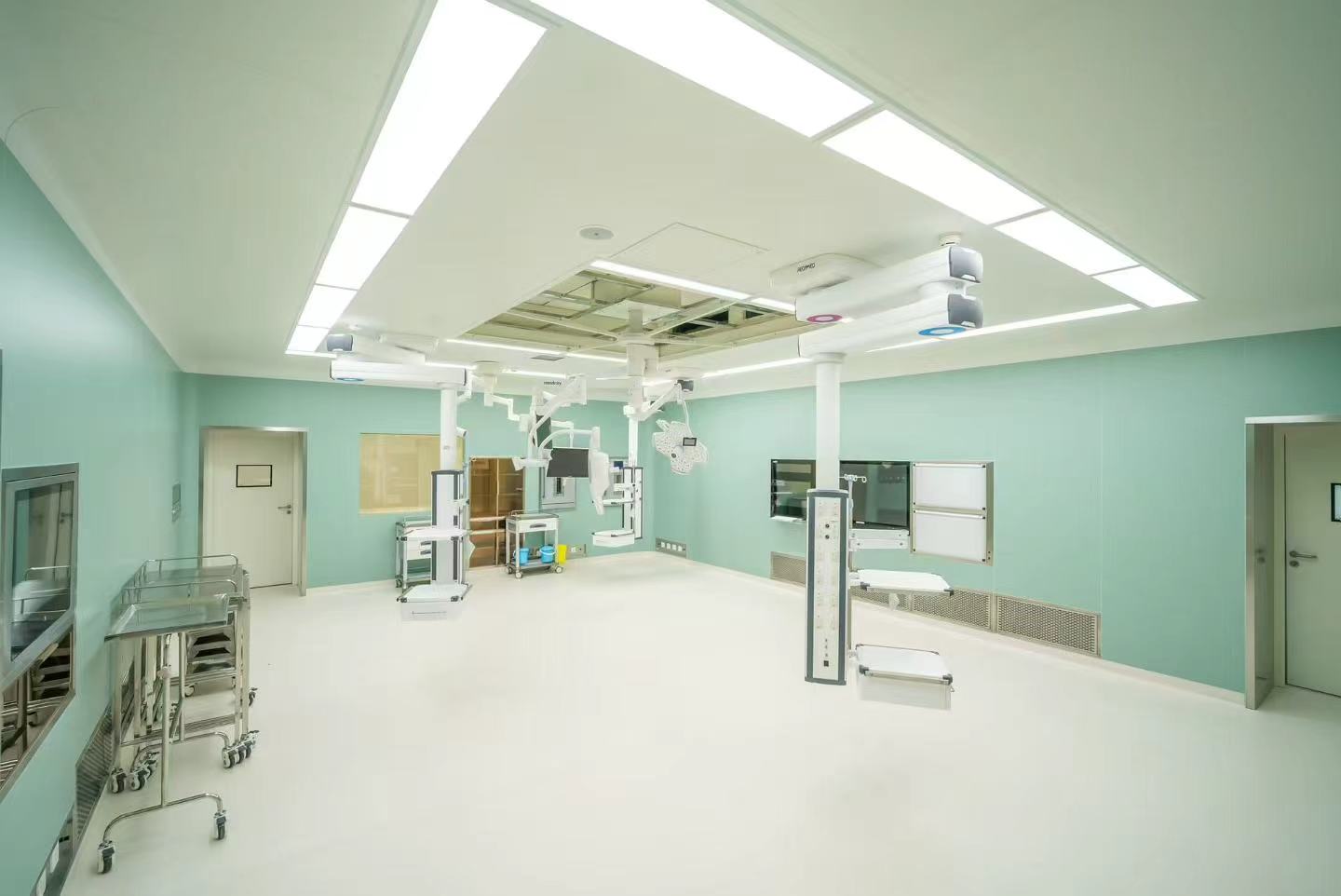

A downward air curtain over the sterile field

The module is a ceiling-mounted box with a perforated or mesh diffusion face. Conditioned supply air from the medical AHU enters through side spigots, passes through an H14 HEPA filter, then flows through a 200-mesh stainless steel diffusion screen to create a uniform, turbulence-free laminar downflow over the operating table.

Specification	Detail
Housing	1 or 1.2 mm electrolytic steel plate with white powder coating; 200-mesh stainless steel diffusion screen
HEPA filter	H14 grade, ≥ 99.995% @ 0.3 µm, certified to EN 1822
Ceiling cut-out	2606 × 2406 / 2606 × 1806 / 2606 × 1406 mm; custom sizes available on request
Mounting	Ceiling hanging rods or interlocking with a modular ceiling system

Model comparison

Choose the right laminar airflow ceiling

Model	Class 100 / ISO 5	Class 1000 / ISO 6	Class 10000 / ISO 7
Figure No.	CL0667	CL0639	CL0672
Face size	2600 × 2400 mm	2600 × 1800 mm	2600 × 1400 mm
Unit dimensions	2637 × 2436 × 485 mm	2637 × 1836 × 485 mm	2637 × 1436 × 485 mm
Airflow range	3370–5616 m³/h	2527–4212 m³/h	1966–3276 m³/h
Construction	All stainless steel flat frame bracket; filter flat and full cloth	Filter side cloth, dual side air supply	Filter side cloth, dual side air supply
Typical application	Orthopedic / implant surgery	General surgery / standard OR	Minor surgery / procedure room

Project coordination: Laminar airflow ceilings are part of a complete HVAC system and must be sized, balanced and commissioned against the project air-handling design. Filter replacement, pressure-drop monitoring and airflow verification are the buyer's responsibility under the facility's maintenance protocol.

How to specify

How to specify your laminar airflow ceiling

Cleanroom classISO Class 5 / Class 100, ISO Class 6 / Class 1,000 or ISO Class 7 / Class 10,000

Face sizeSelect the face area to cover the sterile zone (2600 × 2400, 2600 × 1800 or 2600 × 1400 mm)

Face velocity0.15–0.25 m/s as required by the room classification and procedure

Filter specificationH14 HEPA as standard; confirm EN 1822 certification and test report

Duct connectionSpigot orientation and size to match the medical AHU / MAHU ductwork

FinishWhite powder-coated steel as standard; stainless steel or custom finishes on request

FAQ

Frequently asked questions

What is the difference between this conventional laminar airflow ceiling and the SterilCeiling 3 in 1?

This is a ceiling-mounted laminar flow module that works with a separate medical AHU and ducting. The SterilCeiling 3 in 1 is a self-contained ceiling unit with its own cooling and plasma disinfection built in, requiring no separate AHU.

How do I size the ceiling for my operating room?

The face area should cover the sterile working zone, typically the operating table plus instrument tables. Match the cleanroom class to the procedure: ISO Class 5 / Class 100 for implant and orthopedic surgery, ISO Class 6 / 7 for general and minor surgery.

Does the module include the HEPA filter?

The module is designed around an H14 HEPA filter, but the exact filter size and quantity depend on the module size. Filters are a maintenance consumable; confirm the replacement interval and pressure-drop alarm setpoint with your HVAC maintenance protocol.
