Medical Power Socket Panels for Operating Rooms

Flush-mounted socket panels that put power, grounding and wiring terminals where the surgical team needs them, without breaking the clean wall line.

Face-frame material, socket layout and voltage configuration are built to your electrical schedule, so the finished wall stays coordinated with the rest of the room.

Electrolytic-steel or stainless-steel face Flush wall installation Custom socket layouts

View configurations →

Panel size897 × 247 × 100 mm

InstallationFlush-mounted

Face frameElectrolytic steel or stainless steel

Box body1 mm cold-rolled steel

Product range

Medical Power Socket Panels

Two face-frame materials are available — electrolytic steel with a spray-coated finish and stainless steel with a brushed finish. Both share the same 897 × 247 × 100 mm panel size and can be built to the socket layout your electrical schedule calls for.

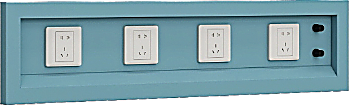

Electrolytic-steel flush-mounted medical power socket panel — `MPSP-01`**Electrolytic-Steel Power Socket Panel**Panel · Spray-coated finish897 × 247 × 100 mmFlush-mounted socket panel with an electrolytic-steel face frame, 1 mm steel-sheet box, dedicated grounding terminal and a standard 86-format socket panel layout.

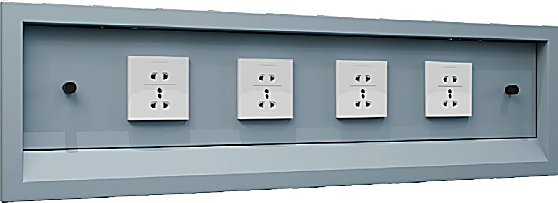

Stainless-steel flush-mounted medical power socket panel — `MPSP-02`**Stainless-Steel Power Socket Panel**Panel · Brushed finish897 × 247 × 100 mmFlush-mounted socket panel with a 1.2 mm stainless-steel face frame in a 45° brushed finish, with a configurable arrangement of 220 V sockets, wiring terminals and optional 380 V socket.

Construction & specifications

A finished wall interface for power

Each panel combines a visible metal face frame with a concealed steel-sheet box, so sockets and wiring terminals sit inside the wall cavity and only the finished face is exposed to the room. Layout, grounding and circuit arrangement follow your project's electrical design.

Specification	Detail
Face frame	Electrolytic steel with a spray-coated finish, or 1.2 mm stainless steel with a 45° brushed finish
Box body	1 mm cold-rolled steel sheet with a spray-coated finish
Overall dimensions	897 × 247 × 100 mm
Grounding	Dedicated grounding terminal provided as standard

Project coordination: Panels are built to your electrical schedule. Confirm circuit count, socket standard, voltage, grounding arrangement and wall opening dimensions with your electrical designer before ordering.

How to specify

How to specify your socket panel

Face materialSpray-coated electrolytic steel, or brushed stainless steel

Socket layoutNumber and position of sockets and wiring terminals

Voltage configuration220 V sockets and, where required, 380 V sockets

Socket standard86-format socket panel or a project-specified arrangement

Wall integrationFlush mounting in a modular steel-panel wall

GroundingDedicated grounding terminal arrangement

FAQ

Frequently asked questions

Can the socket layout be built to our own arrangement?

Yes. The number and position of sockets and wiring terminals is the part of the panel most often customized. Send the circuit list or a marked-up elevation and the panel is built to match; the 897 × 247 mm face frame and 100 mm box depth stay the same.

Which face material should we choose — electrolytic steel or stainless steel?

Electrolytic steel with a spray-coated finish is the standard choice and can be colour-matched to the room. Stainless steel is specified where the panel sits alongside stainless equipment, cabinetry or door frames, or where the cleaning protocol is more aggressive. Both use the same box and grounding arrangement.

Is a 380 V socket available in the same panel?

Yes, when the project requires it. A typical arrangement pairs 220 V five-hole sockets with a single 380 V socket and wiring terminals, but the mix is built to your schedule rather than fixed.
